Qyteco QY6565-12.8mm-4.8mm ກ້ອງຖ່າຍຮູບກວດກາເສດຖະກິດ Portable (Camera 12mm/ 40mm, Cable 5m/10m/20m/30m)

Cable Length: 16.5ft/5m, 33ft/10m, 66ft/20m, 99ft/30m

Camera Size:

- 0.50 x 0.53 in./12.8mm x 135 mm

- Front size: 0.47 in./16.5ft/5m, 33ft/10m, 66ft/20m, 99ft/30m

- 0.83 x 0.65 in./21 mm x 165mm

- Front size: 1.58 in./40mm

Camera: 600TVL/700TVL

Camera Case Material: Stainless Steel 304

Battery Capacity: 3800mAh

LED Adjustable: Yes

View Angle: 60°/90°

Camera LED light: 6/12 PCS LEDs

Waterproof: IP67

Work Temperature: +14ºF to 122ºF / -10ºC to 50ºC

Storage Temperature: +4ºF to 140ºF / -20ºC to 60ºC

Suitable Pipeline Diameter: φ > 1.3''/32mm

Optional functions/parts:

1. 4.8mm in blue cable for both 12.8mm and 21mm HD sewer camera, optional 5/10/20/30M;

2. 5.3mm in red cable for 21mm HD sewer camera, optional 5/10/20/30M .

Product Description

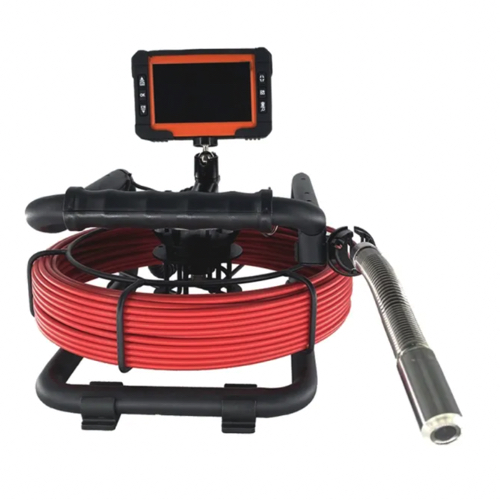

This pipe inspection camera system is designed as a real-time inspection camera and to unveil the internal objects and/or structures with the illumination of the highlight LEDs, it is specially designed for pipeline, sewer, drain, duct, chimney, plumbing, building, swimming pool, milk pipes, water mains, cable pipes, central air conditioning, pipes ventilation systems and other plumbing related sites, and many more where a pipe inspection camera system is required.

This system is suitable for pipes with inner diameter at 15mm-200mm (1/2''-4''). Ability to go through 90°bends in pipe with inner diameter at 50mm(for 21mm camera with 5.3mm push rod), 32mm(for 12.8mm camera with 4.8mm push rod).
