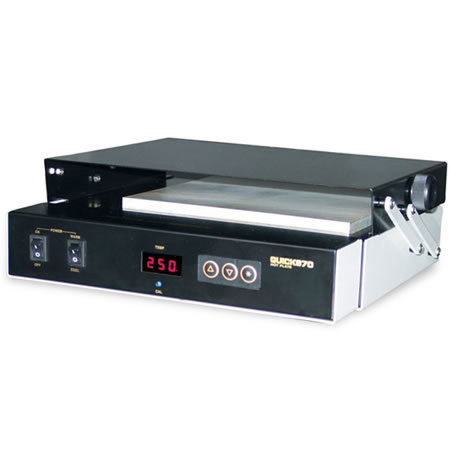

QUICK QUICK 870 ສະຖານີ preheating

power: 800W

Heating plate area: 130 × 130mm

Heating plate material: aluminum

Temperature Sensor: K type thermocouple

temperature range: 50 ° C ~ 300 ° C

Ambient temperature: 0 to 40 ° C

Temperature stability: ±2°C

Dimensions: 280(L) × 290(W) × 100(H)mm

weight: About 5.8kg

Features:

1. With a special heater, the panel surface temperature is evenly distributed.

2. The sensor is closed loop PID control, the temperature is accurate and stable.

3. Use two switches to control the power supply and heating separately. When not heating, the actual temperature on the preheating plate can also be displayed to avoid accidental burns.

4. It can be used for reflow soldering and preheating of some boards, and other processes that require uniform heating.

5. Anti-static design.

Datasheet
