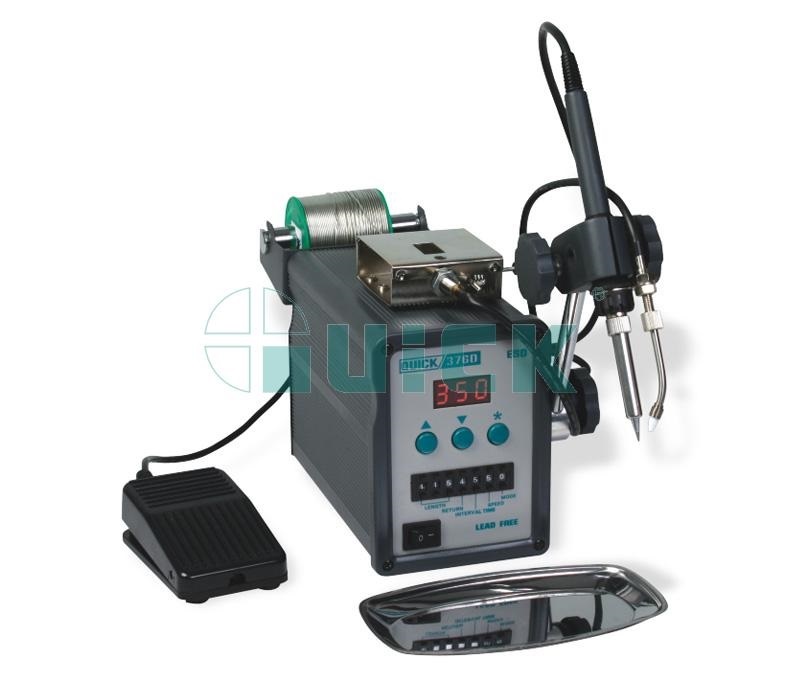

QUICK QUICK 376D ສະຖານີ soldering ອັດຕະໂນມັດ (90W, 50°C~ 600°C)

power: 90W

temperature range: 50 ° C ~ 600 ° C

Temperature stability: ±2 ° C (still air without load)

Tip to ground potential: <2mV

Tip to ground resistance: <2Ω

Motor: Stepper motor

Tin speed: About 2.7mm/s to 27mm/s (36o/s to 360o/s)

Tin length: 0～150mm

Tinning interval: 0~2.7s

Back to tin time: 0 to 0.9 s (about 0 to 25 mm fixed speed: 360o/s)

Tin mode: Automatic (1~9) / manual (0)

Tin wire diameter: 0.6, 0.8, 1.0, 1.2, 1.4 (mm)

weight: About 3.3kg

Handle model: 20H-90

Video

Features:

1. The soldering iron adopts the principle of high frequency heating, and the K-type sensor controls the temperature, and the temperature rise and the return temperature are extremely fast.

2. Microcomputer control, push-button temperature adjustment, digital temperature calibration and automatic sleep function.

3. Automatic and manual tin feeding mode is available, and the number of tinning can be set.

4. The tinning speed, tin length and tinning interval are adjustable, and the adjustable tin return function is provided to reduce the waste of solder.

5. Configurable pedal tin switch and manual tin switch.

6. Can also be used alone as a lead-free soldering iron.

Datasheet
