Supply Voltage: 220VAC
Number of Axis: 3-axis
Operation Range: X/Y/Z axis: 400/400/100 mm
Speed Range: X/Y axis: 0.1～800 （mm/sec)
Z axis: 0.1～300 （mm/sec）
Repeat Positioning Accuracy: ±0.01 mm
Load Capacity: Platform: 8Kg (servo motor + precision ball screw)
Head（Z axis) : 5Kg (servo motor + precision ball screw)
Speed Control: 3-dimensional linear, circular interpolation, automatic lifting speed adjustment with speed look-ahead
Capacity for Teaching Files: Up to 255, and 60000 for all points
Capacity for Processing Files: Up to 255
Operating Conditions: Temperature: 0～40℃; Humidity: 20％～90％（no condensation）
Dimensions W×D×H: 840*780*655mm
Weight: 70 kg
Features:

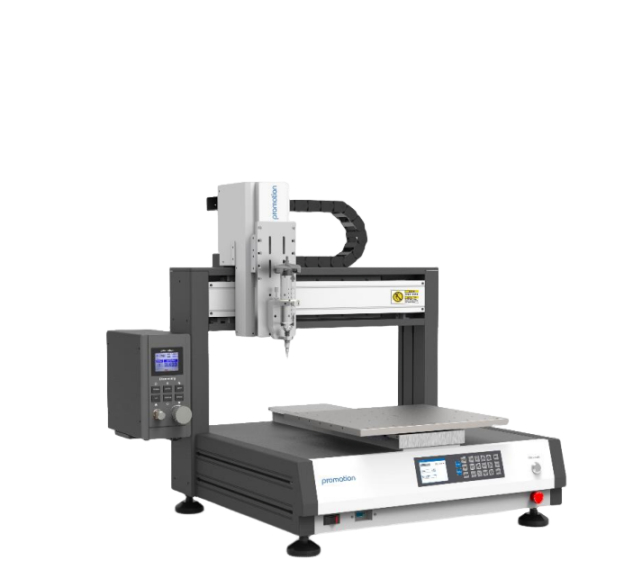

QUICK self-developed precision series F special motion platform, with high speed and high precision; applying noise suppression control for low noise level; imported servo motor and linear double track plus lead screw are used for X, Y, Z-axis for high load capacity and high stability
Equipped with QUICK 982D precision dispensing controller, using imported high flow precision pressure reducing valve for higher pressure accuracy and faster dispensing response; built-in air storage tank to balance the instant pressure fluctuation at opening of valve for stable dispensing accuracy
With functions of communication, needle cleaning, starting point calibration
Inlet air pressure and dispensing air pressure are adjustable, can quickly supply dispensing pressure, fast response, high dispensing precision
With hand slide valve, the air source can be quickly cut off
Two-hand start buttons (optional), machine upper cover plate with bayonet for easy maintenance
Displaying processing files (up to 255), equipment status, number of dispensing in real-time, the processing program can be switched by pressing buttons
