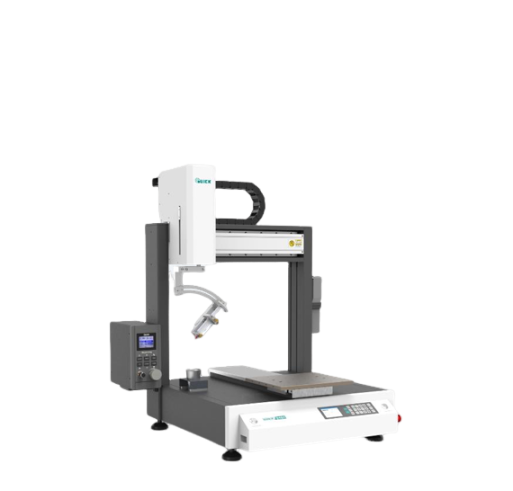

QUICK QUICK ET8484 Desktop Dispenser (400/400/100mm/±180°)

Supply Voltage: 110VAC/220VAC

Number of Axis: 4-axis

Operation Range: X/Y/Z/R axis:    400/400/100mm/±180°

Speed Range:  X/Y axis: 0.1～800 （mm/sec)

                        Z axis: 0.1～300 （mm/sec）

Repeat Positioning Accuracy:  X/Y/Z axis: ±0.01 mm

Load Capacity:  Platform:8 kg;  Head （ZR axis): 3 Kg （stepper motor + precision ball screw)

Speed Control: 3-dimensional linear, circular interpolation, automatic lifting speed adjustment with speed look-ahead

Capacity for Teaching Files: Up to 255, and 60000 for all points

Capacity for Processing Files: Up to 255

Operating Conditions: Temperature: 0～40℃;  Humidity: 20％～90％（no condensation）

Dimensions W×D×H: 740*765*840mm

Weight: 49 kg

Features:

QUICK self-developed compact series E special motion platform, with high speed and high precision; applying noise suppression control for low noise level; Y-axis closed-loop control, with no pulse missing and high load capacity

Equipped with QUICK 982D precision dispensing controller, using imported high flow precision pressure reducing valve for higher pressure accuracy and faster dispensing response; built-in air storage tank to balance the instant pressure fluctuation at opening of valve for stable dispensing accuracy

With functions of needle cleaning and starting point calibration

R-axis±180°for flexible and convenient application of process

Pressure warning and optional lack of adhesive warning

Inlet air pressure and dispensing air pressure are adjustable, can quickly supply dispensing pressure, fast response, high dispensing precision

With hand slide valve, the air source can be quickly cut off

Can communicate with PC via RS-485 to monitor and set values of temperature and feeding in real time and more

Data can be read by PC and uploaded to MES system in real time

Displaying processing files (up to 255), equipment status, number of dispensing in real-time, the processing program can be switched by pressing buttons
