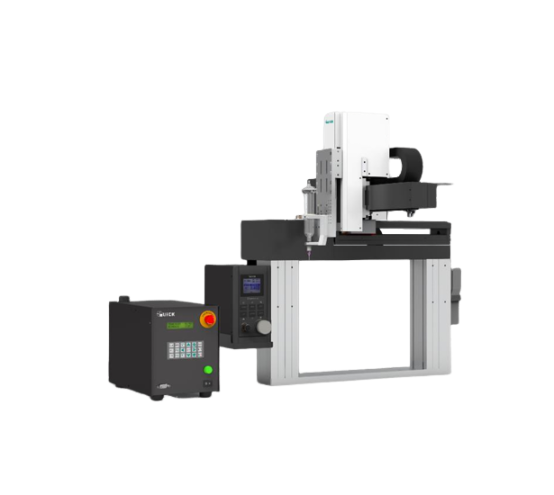

QUICK QUICK 8353N ເຄື່ອງປະສານງານຮູບສີ່ແຈສາກ (300/300/100 mm)
Supply Voltage: 220VAC
Number of Axis: 3-axis
Operation Range: X/Y/Z axis: 300/300/100 mm
Speed Range: X/Y axis: 0.1～300 （mm/sec)
Z axis: 0.1～300 （mm/sec）
Repeat Positioning Accuracy: X/Y/Z axis: ±0.01 mm
Load Capacity: Platform: 8Kg （servo motor + precision ball screw）; Head（Z axis): 5Kg（servo motor + precision ball screw）
Speed Control: 3-dimensional linear, circular interpolation, automatic lifting speed adjustment with speed look-ahead
Capacity for Teaching Files: Up to 255, and 60000 for all points
Capacity for Processing Files: Up to 255
Operating Conditions: Temperature: 0～40℃; Humidity: 20％～90％（no condensation）
Dimensions W×D×H: 757*620*690mm
Weight: 49 kg
Features:
Seamless connection with other modules to improve productivity
Dispensing speed, time and angle are freely adjustable
Can be equipped with intelligent vision system to automatically
recognize the product to be processed
Easy installation tuning, configured with high-precision piston, with excellent fluidity and high withstand voltage to ensure high precision dispensing
Suitable for red glue, UV glue, AB glue, epoxy resin, flux, etc.
Datasheet
