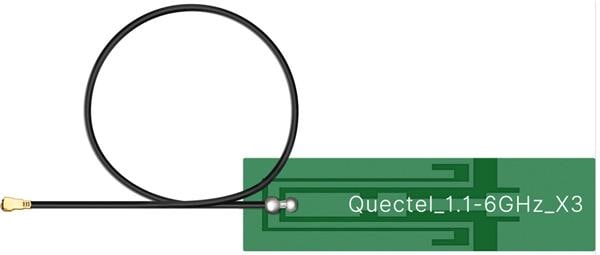

Quectel YP0009BA ອານເຕນນະສະຕິບັດຕົວໃນ, 1100-6000, 5G, PCB ພ້ອມສາຍສັບ, 193 +/-3, IPEX ?, ການຕິດກັນ, 49 13 0.85 (ບໍ່ແນະນຳ)

Gain: 4.67 dBi

VSWR: 3

Style: I-Bar

Width: 13 mm

Height: 0.85 mm

Length: 49 mm

Impedance: 50 Ohms

Cable Type: 193 mm RF1.13

Application: Cellular Radio, Wireless Applications

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 1176 MHz, 1190 MHz, 1202 MHz, 1227 MHz, 1242 MHz, 1268 MHz, 1278 MHz, 1575 MHz, 1602 MHz, 1621 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 3500 MHz, 4500 MHz, 5500 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 1.1 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF4

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
