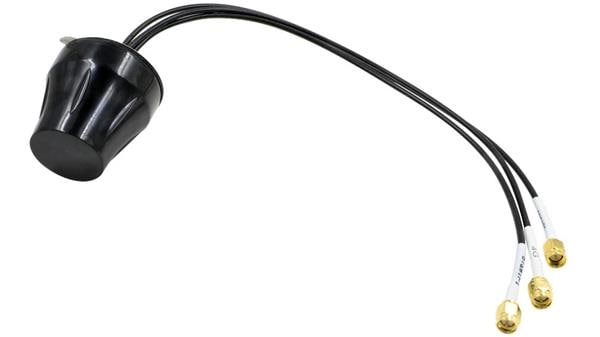

Quectel YKL001AA MIMO ພາຍນອກ, BT: 2400 2500 MHz; 4G: 824 960 MHz; 1710 2690 MHz; GPS,BD: 1575.42 +/-10 MHz, 1561 +/-10 MHz, LTE (4G), ການປະສົມ, 310 +/-10, SMA ຜູ້ຊາຍ (ຫົວກຽມ), ນຸ່ມສອງ, 33 48

Gain: 2 dBi

VSWR: 3

Style: Dome

Width: 33 mm

Length: 48 mm

Diameter: 50 mm

Impedance: 50 Ohms

Cable Type: 310 mm RG174 x 3

Application: Cellular Radio, Wireless Applications

Cable Length: 3 m

Mounting Style: Direct / Permanent Mount

Number of Bands: 5 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2450 MHz, 2500 MHz, 1575 MHz, 1561 MHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
