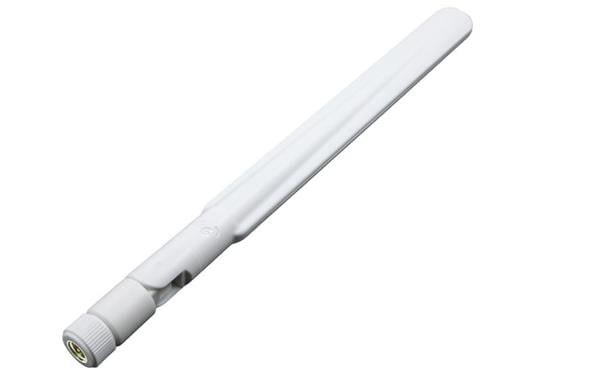

Quectel YGL001AA ອະນຕີນາພາພາສິບ ພາຍນອກ, 700-960,1710-2690 , LTE (4G), Dipole, -, SMA Male (center pin) , Terminal, 196.2 16 13

Gain: 3 dBi

VSWR: 5

Style: Blade Tilt / Swivel

Width: 16 mm

Height: 13 mm

Length: 196.2 mm

Impedance: 50 Ohms

Application: Cellular Radio, Wireless Applications

Mounting Style: Panel Mount

Number of Bands: 2 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz

Mechanical Style: Whip

Maximum Frequency: 2.69 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
