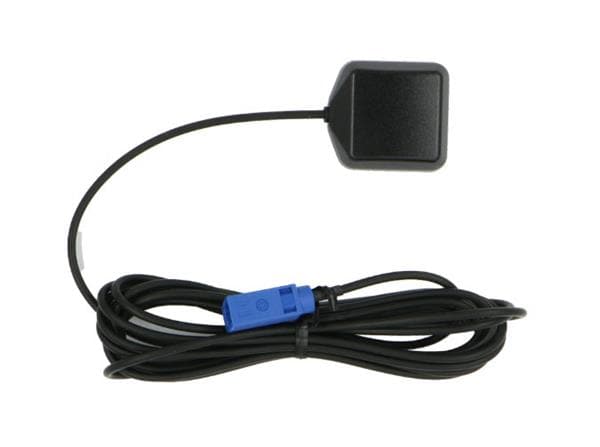

Quectel YG0065AA ອະນຕີນາພາສະພາຍນອກ ແອັກຕິບ ພາຍນອກ, 1575-1602, GNSS L1, Patch, 3000, FAKRA Female (Code C), Magnetic, 34.5 37.5 12.5

Gain: 2.4 dBi, 2.8 dBi

VSWR: 2

Width: 34.5 mm

Height: 12.5 mm

Length: 37.5 mm

Frequency: 1.575 GHz to 1.61 GHz

IP Rating: IP66

Impedance: 50 Ohms

Polarization: RHCP

Mounting Style: Magnetic Mount

Frequency Range: 1.575 GHz to 1.61 GHz

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz, 1.602 GHz

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.575 GHz

Termination Style: FAKRA Connector

Antenna Connector Type: FAKRA Female

Protocol - GPS, GLONASS: GNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
