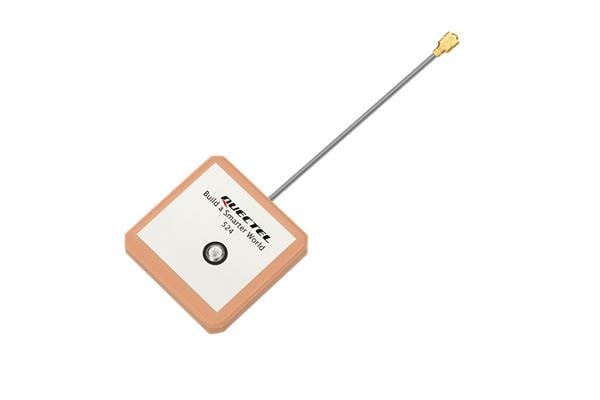

Quectel YG0015AA ເຄື່ອງຮັບສະຫນາມແອັກຕິບພ້ອມສາຍສັ້ນ, ແອັກຕິບ, 1559-1606, GNSS L1, ເຄຣາມິກ, 55 +/-3, IPEX ?, ການຕິດຕັ້ງສາຍ, 25 25 8.25

Gain: 0.47 dBi - 0.29 dBi

VSWR: 2

Style: Ceramic

Width: 25 mm

Height: 7.6 mm

Length: 25 mm

Impedance: 50 Ohms

Cable Type: 55 mm RF1.13

Application: Satellite Navigation, Satellite Tracking

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz, 1.602 GHz

Mechanical Style: Patch

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.575 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
