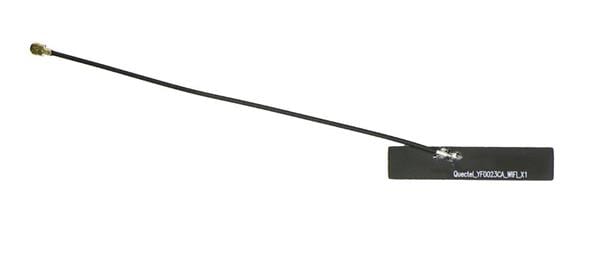

Quectel YF0023CA ອານເທນາ PCB FPC antenna,wifi,L=100MM,RF 1 (IPEX 1)

Gain: 7 dBi

Style: I-Bar Flex

Width: 7.5 mm

Length: 37.8 mm

Bandwidth: 100 MHz, 950 MHz, 1.2 GHz

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Cable Length: 100 mm

Polarization: Linear

Frequency Range: 2.4 GHz to 2.5 GHz, 4.9 GHz to 5.85 GHz, 5.925 GHz to 7.125 GHz

Number of Bands: 3 Band

Center Frequency: 2.45 GHz, 5.375 GHz, 6.525 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Antenna Connector Type: RF I

Protocol - WiFi - 802.11: WiFi, WiFi 5, WiFi 6, WiFi 6E

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C
