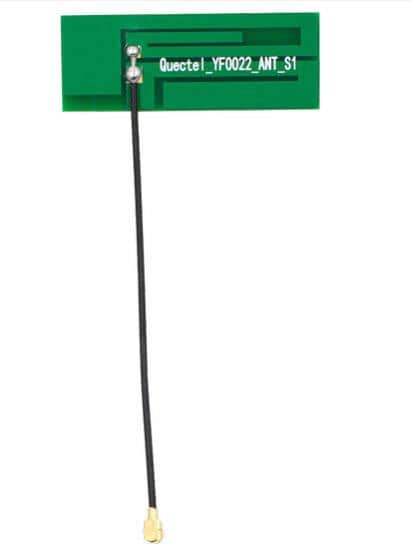

Quectel YF0022AA ອານເຕນາພາສິບ ແອນເບັດເດດ, 700-2690, LTE (4G), PCB ພ້ອມສາຍສື່ມຕໍ່, 75 +/-3, RF1, ການຕິດກັນ, 40 15 1.6 (ບໍ່ແນະນຳສໍາລັບການອອກແບບໃໝ່)

Gain: 5.34 dBi

VSWR: 3

Style: T-Bar

Width: 15 mm

Height: 1.6 mm

Length: 40 mm

Impedance: 50 Ohms

Cable Type: 75 mm RF1.13

Application: Cellular Radio, Wireless Applications

Mounting Style: Adhesive Mount

Number of Bands: 3 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.69 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: RF Gen 1

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
