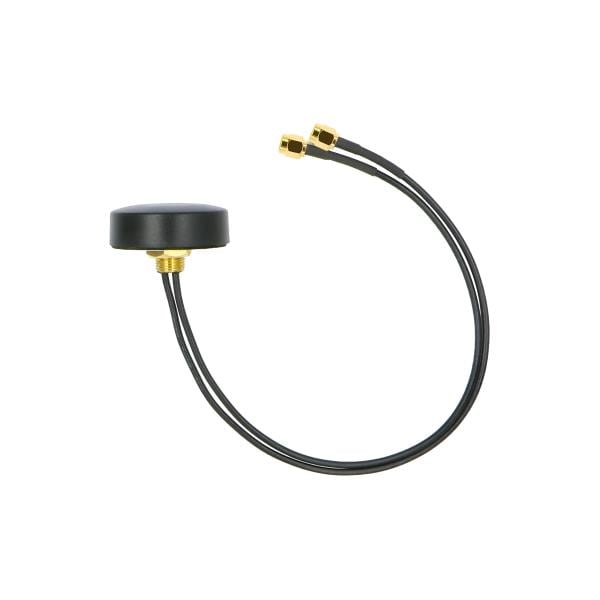

Quectel YEWN004AA ອານເຕນລະບົບລົດ, ອານເຕນລະບົບພາຍນອກ, ຮູບແບບຕ່ຳ, 2in1, ຕິດຕັ້ງດ້ວຍກະແປງ, F4615mm, Combo, WIFI*2,300mm, RG174, SMA Male, IP66, ສອດຄ່ອງ RoHS

Gain: 5.2 dBi

VSWR: 3

Style: Round

Height: 15 mm

Bandwidth: 100 MHz, 1 GHz

IP Rating: IP66

Impedance: 50 Ohms

Cable Type: RG174

Cable Length: 300 mm

Polarization: Linear

Mounting Style: Direct / Permanent Mount

Electrical Type: MIMO

Frequency Range: 2.4 GHz to 2.5 GHz, 5 GHz to 6 GHz

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Puck

Maximum Frequency: 6 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G/5G
