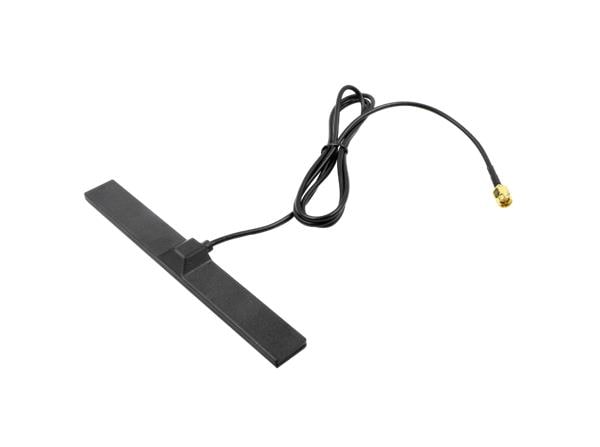

Quectel YE0010AA ອະນເທນາພາສິບ ອະນເທນາພາພາຍນອກ, ຮູບແບບຕ່ຳ, ຕິດກັນດ້ວຍການກວດກາ, 1521811.1mm, ດິໂພນ, 4G*1,1000mm, RG174, SMA ຜູ້ຊາຍ, IP66, ສອດຄອງ RoHS

Gain: 3 dBi

VSWR: 3

Style: T-Bar

Width: 18 mm

Height: 5.9 mm

Length: 152 mm

Impedance: 50 Ohms

Cable Type: 1 M RG174

Application: Cellular Radio, Wireless Applications

Cable Length: 1 m

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
