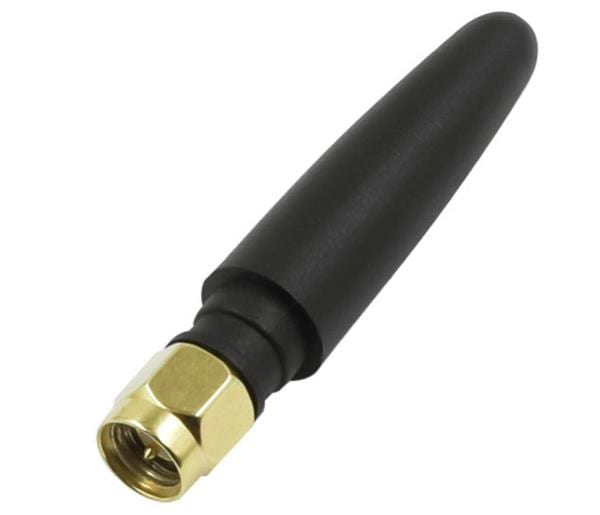

Quectel YE0008AA ເຄື່ອງຮັບສະຫນອງພາຍນອກ Passive Antenna External, 824-960, 1710-2170 , 2G/3G/NB-IoT, Monopole, -, SMA Male (center pin) , Terminal, 52 F 10 (ບໍ່ແນະນຳໃຊ້ໃນການອອກແບບໃໝ່)

Gain: 3 dBi

VSWR: 3.5

Style: Stubby

Length: 52 mm

Diameter: 10 mm

Impedance: 50 Ohms

Application: Cellular Radio, Wireless Applications

Mounting Style: Panel Mount

Number of Bands: 2 Band

Center Frequency: 868 MHz, 915 MHz, 933 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz

Mechanical Style: Whip

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
