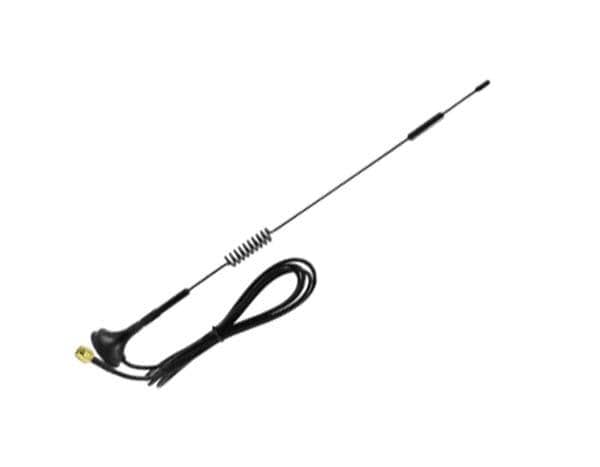

Quectel YE0006AA ອະນຕີນາພາພາສິບ ອະນຕີນາພາພາພາຍນອກ, Whip, ຕິດຕັ້ງແບບແມ່ແມງ, F 30 318mm, Monopole, 4G*1,1500mm, RG174, SMA Male, IP65, ສອດຄ່ອງ RoHS

Gain: 3 dBi

VSWR: 2

Style: Blade

Length: 318 mm

Diameter: 30 mm

Impedance: 50 Ohms

Cable Type: 1.5 M RG174

Application: Cellular Radio, Wireless Applications

Mounting Style: Panel Mount

Number of Bands: 1 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz

Mechanical Style: Whip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
