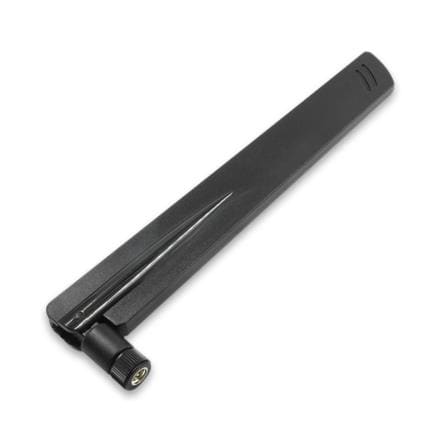

Quectel YE0001BA ອະນຕີນາພາພາສິບ ພາຍນອກ, 600-6000, 5G, Dipole, -, SMA Male (center pin), Terminal, 221 26.95 13.5

Gain: 5 dBi

VSWR: 3

Style: Blade Tilt / Swivel

Width: 26.95 mm

Height: 13.5 mm

Length: 221 mm

Impedance: 50 Ohms

Application: Cellular Radio, Wireless Applications

Mounting Style: Panel Mount

Number of Bands: 1 Band

Center Frequency: 750 MHz, 800 MHz, 868 MHz, 900 MHz, 915 MHz, 933 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 3500 MHz, 5500 MHz

Mechanical Style: Whip

Maximum Frequency: 6 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
