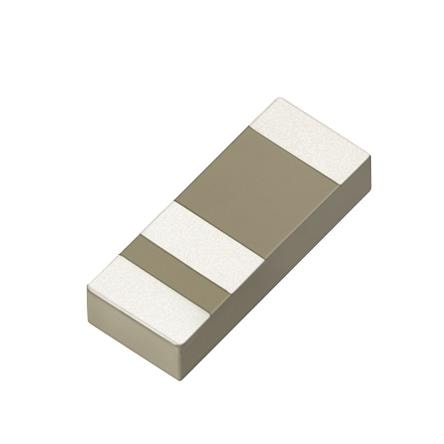

Quectel YC0011AA ອະນຕີນາພາພາສິບ ແບບຝັງຢູ່, 2400-2500 MHz, 5150-5850 MHz, Wi-Fi (Bluetooth), ເຊຣາມິກ, -, -, SMD, 5.0 2.0 1.0

Gain: 4 dBi

Style: Ceramic

Width: 2 mm

Height: 1 mm

Length: 5.2 mm

Impedance: 50 Ohms

Application: Cellular Radio, Wireless Applications

Mounting Style: PCB Mount

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Chip

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
