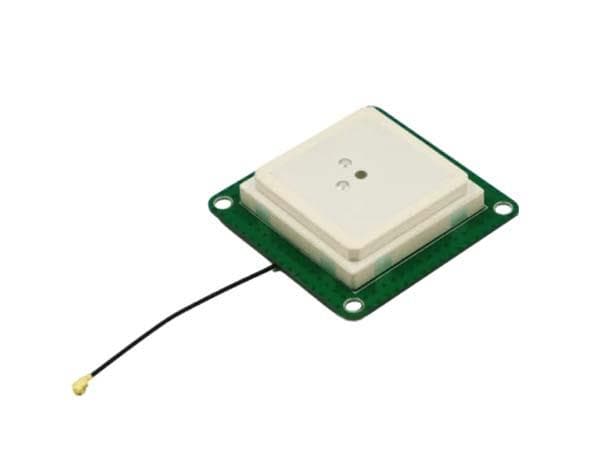

Quectel YBS00A1AA ເຄຣາມິກ ເຄຣາມິກ ອະນຕະນາ, GNSS, L1/L5

Gain: 0.97 dBi, 3.55 dBi, 17 dB

VSWR: 2

Width: 58.7 mm

Height: 14.4 mm

Length: 58.7 mm

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Cable Length: 60 mm

Polarization: RHCP

Mounting Style: Chassis Mount

Electrical Type: Patch

Frequency Range: 1.166 GHz to 1.186 GHz, 1.559 GHz to 1.606 GHz

Number of Bands: 2 Band

Center Frequency: 1.17645 GHz, 1.57542 GHz

Maximum Frequency: 1.606 GHz

Minimum Frequency: 1.166 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
