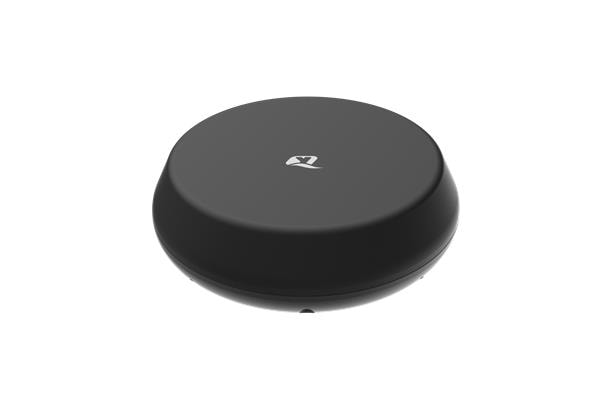

Quectel YB0027AA ອະນຕີນາ 5G ພາຍນອກ, ຮູບແບບຕ່ຳ, 9in1, ຕິດຕັ້ງດ້ວຍກຸມ, F 162 56mm, ຄອມໂບ, 5G*4+5G*4+GNSS L1&L5*1,300mm, ALS302, SMA ຜູ້ຊາຍ, ການເພີ່ມ LNA 22+/-3dB, IP67 & IP69K, IK09, UL 94 HB, UL 746c f1, ສອດຄ່ອງ RoHS&REACH

VSWR: 3.4

Style: Active Module

Height: 56 mm

Diameter: 162 mm

IP Rating: IP67, IP69K

Impedance: 50 Ohms

Cable Type: ALS302, RG174

Application: 4G/5G

Cable Length: 300 mm

For Use With: RM520x

Polarization: Linear, RHCP

Mounting Style: Direct / Permanent Mount

Electrical Type: LNA

Number of Bands: 5 Band

Mechanical Style: Module

Ground Plane Size: 300 mm x 400 mm

Maximum Frequency: 6 GHz

Minimum Frequency: 600 MHz

Termination Style: SMA Male

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G/5G
