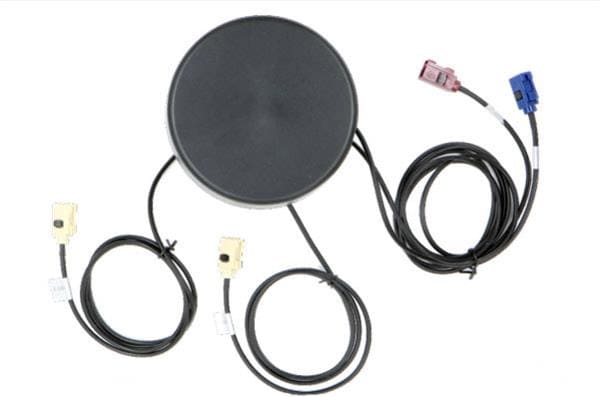

Quectel YB0026AA ຊຸດອະນຕີນາພາພາຍນອກ, LTE: 700-2700 MHz; Wi-Fi: 2400-5850 MHz; GNSS: 1561 MHz/1575.42 MHz/1602 MHz, LTE&GNSS&Wi-Fi1&Wi-Fi2, ການປະສົມ, 1.5DSL=1000, GNSS:FAKRA_CLTE:FAKRA_DWi-Fi1:FAKRA_IWi-Fi2:FAKRA_I, ນຸ່ມສອງ, F 120 43

Gain: 2 dBi, 20 dBi

VSWR: 2, 4

Frequency: 700 MHz to 2.7 GHz, 2.4 GHz to 5.85 GHz

IP Rating: IP67

Impedance: 50 Ohms

Application: Cellular LTE/Wi-Fi/GNSS

Cable Length: 1 m

Polarization: Circular, Linear

Mounting Style: Screw Mount

Frequency Range: 700 MHz to 2.7 GHz, 2.4 GHz to 5.85 GHz

Number of Bands: 4 Band

Maximum Frequency: 5.85 GHz

Minimum Frequency: 700 MHz

Antenna Connector Type: FAKRA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
