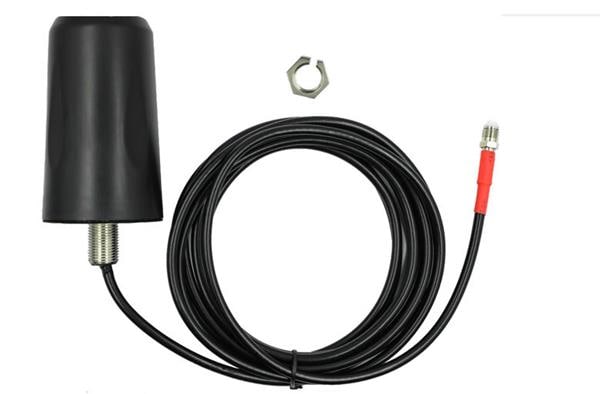

Quectel YB0016AA ອະນຕີນາພາສິບ ພາຍນອກ, 698-960, 1710-2700, LTE (4G), Monopole, 3000 +/-50 (LMR200), SMA Male (center pin), Screw, 54 91

Gain: 2.5 dBi

VSWR: 3

Style: Dome

Width: 46.5 mm

Length: 91 mm

Diameter: 54 mm

IP Rating: IP66

Impedance: 50 Ohms

Cable Type: 3 M LMR200

Application: Cellular Radio, Wireless Applications

Mounting Style: Direct / Permanent Mount

Number of Bands: 2 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
