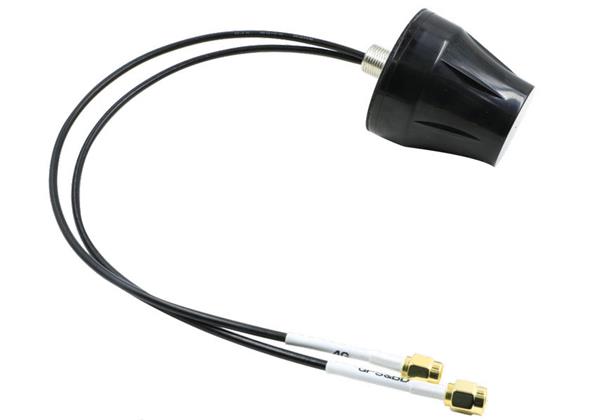

Quectel YB0009AA MIMO ພາຍນອກ, 4G: 824 960 MHz, 1710 2690 MHz; GPS, BD: 1575.42 +/-10 MHz, 1561 +/-10 MHz , LTE&GNSS, ການປະສົມ, 310 +/-10, SMA ຜູ້ຊາຍ (ຫົວກາງ), ນຸ່ມສອງ, 33 48

Gain: 2 dBi

VSWR: 3

Style: Dome

Width: 33 mm

Length: 48 mm

Diameter: 50 mm

IP Rating: IP66

Impedance: 50 Ohms

Cable Type: 310 mm RG174 x 2

Application: Cellular Radio, Wireless Applications

Polarization: Circular, Linear

Mounting Style: Direct / Permanent Mount

Number of Bands: 3 Band

Center Frequency: 868 MHz, 900 MHz, 915 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 1575 MHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
