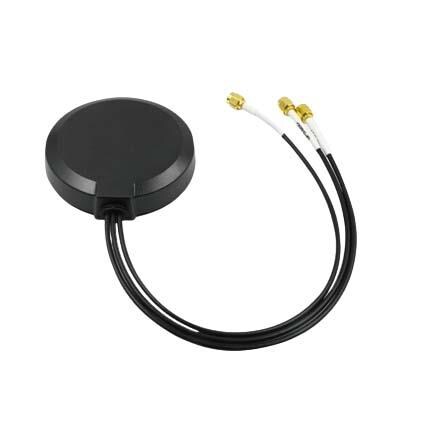

Quectel YB0008AA MIMO ພາຍນອກ, 4G ຫຼັກ: 698 960 MHz, 1710 2690 MHz; GNSS: 1575.42 +/-5 MHz, 1561.098 +/-5 MHz; 4G ສອງ: 1710 2690 MHz, ຫຼັກ LTE & ສອງ LTE & GNSS, ການປະສົມ, 300 +/-10, SMA ຜູ້ຊາຍ (ຫົວກາງ), ການຕິດກັນ, ສະຕິກເກີ 84 17.5

Gain: 2.94 dBi, 3.96 dBi

VSWR: 4

Style: Dome

Length: 17.5 mm

Diameter: 84 mm

IP Rating: IP66

Impedance: 50 Ohms

Cable Type: 300 mm RG174 x 3

Application: Cellular Radio, Wireless Applications

Polarization: Circular, Linear

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 4 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 1575.42 MHz, 1561.098 MHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
