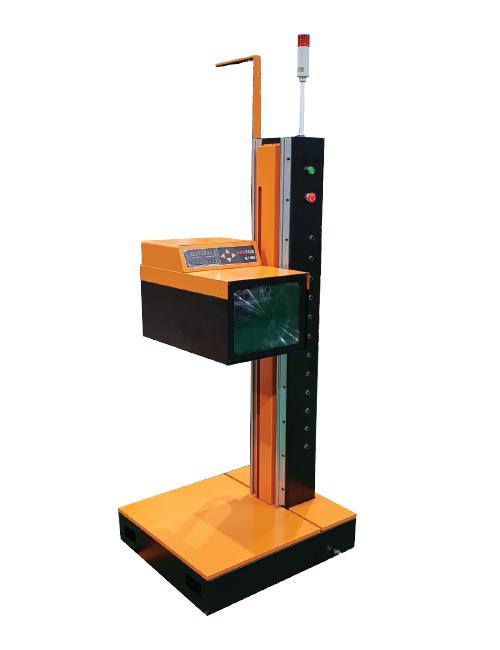

QROTECH QLT-805A ເຄື່ອງທົດສອບໄຟໜ້າ (1 m; 0~120,000 cd)

Measurement method: CMOS camera, Automatic

Measurement items: High beam, low beam (optional)

Measuring distance: 1 m

Luminous intensity: 0 ~ 120,000 cd

Beam angle:

Up: 0–350 mm / 10 m (0 ~ 2°)

Down: 0–525 mm / 10 m (0 ~ 3°)

Left: 0–525 mm / 10 m (0 ~ 3°)

Right: 0–525 mm / 10 m (0 ~ 3°)

Communication: RS232

Dimension: 830 × 750 × 1,600 mm

Weight: 95 Kg

Power: AC 220V ± 10%, 50/60Hz

5 million pixel CMOS camera measurement

High beam & low beam measurement

Automatic alignment by camera and photocell

Halogen, xenon, LED measurement of motorcycle and vehicle

Safe inspection by warning light and alarm sound

Automatic pass/fail judgement

Measurement of hot point or cut-off line
