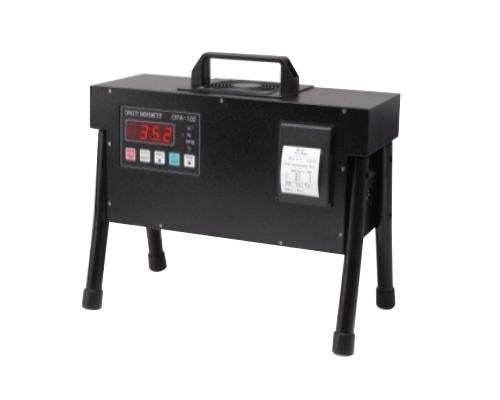

QROTECH OPA-102 ເຄື່ອງວັດແທກຄວາມໂປ່ງໃສ (0.0 ~ 100 %)

Measurement items: Smoke Opacity (%), Smoke Density (m⁻¹)

Measuring principle: Partial flow opacimeter

Measuring range:

Opacity (N): 0.0 ~ 100 %

Absorption coefficient (K): 0.00 ~ 21.42 m⁻¹

Resolution:

Opacity (N): 0.10 %

Absorption coefficient (K): 0.1

Measuring units: Green LED (565 nm), Photodiode, optical length of 215 mm

Preheating time: 3 ~ 6 minutes

Power consumption: 110V / 220V AC 50/60Hz (about 100 W)

Weight: About 7 Kg

Dimension: 450(W) × 200(D) × 245(425)(H) mm

Option: Printer, Standard Filter, Remote controller, RPM, Oil Temperature

Special Features of Goods

This opacity meter measures a diesel smoke density of automobile burning diesel as fuel to diagnose the condition of automobile and provide preventive maintenance in order to avoid air pollution.

Features

- Partial flow opacimeter

- Real-time measurement with fast response speed

- Measuring unit and result display unit in one main device

- "Quickly discharge smoke from vehicles with dual fans (to prevent pollution of lenses) "

- Free accelerator and peak hold function installed

- RS232 communication

- Remote controller and built-in thermal printer (Option )

- RPM and oil temperature (Option)
