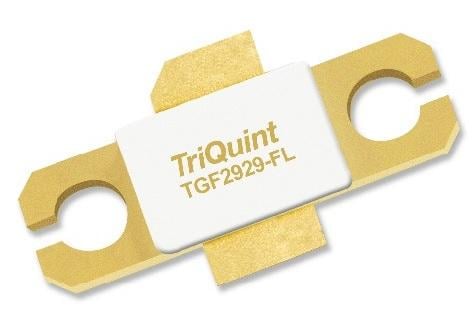

Qorvo TGF2929-FL RF Power MOSFET DC-3.5GHz 100W 28V GaN

Technology: GaN-on-SiC

Unit Weight: 64.190 g

Output Power: 100 W

Mounting Style: Screw Mount

Moisture Sensitive: Yes

Transistor Polarity: N-Channel

Pd - Power Dissipation: 144 W

Vgs - Gate-Source Voltage: - 7 V, + 2 V

Maximum Operating Frequency: 3.5 GHz

Minimum Operating Frequency: 0 Hz

Id - Continuous Drain Current: 12 A

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Vds - Drain-Source Breakdown Voltage: 28 V

Vgs th - Gate-Source Threshold Voltage: - 2.9 V
