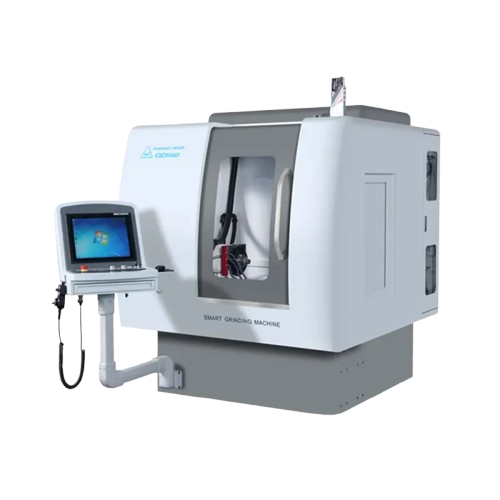

Qian Dao QD560 ເຄື່ອງບົດເຄື່ອງມື CNC 5 ແກນ (3–12 mm, 200 mm)

CNC system: SYNTEC 210MA-5E

Max. Processing workpiece diameter: 200mm

Max. processing workpiece length: 170mm

Max. processing workpiece groove depth: 10mm

Max. Workpiece weight: 10KG

Grinding range: 3-12mm

Grinding head Max. Power(electric spindle): 11KW/22KW

Grinding wheels (CBN/diamond): Φ50～Φ200mm

Grinding head spindle rotation speed (frequency regulation): 1000-6000rpm

Vertical lifting stroke of workpiece head frame (Z axis): 360(-100/+260)mm

Workable travel X axis/Y-axis: X：450mm / Y：590mm

Linear axis quick travel speed: 15m/min

Workpiece spindle rotation speed（A-axis）: 200rpm

Rotation range of A-axis: ∞

clamping range: Φ3～Φ20mm

Automatic clamping workpiece range: Φ3～Φ20mm

Grinding head swing Max rotation speed(C-axis): 30rpm

Rotation range of C-axis: 325°（+230°~-95°）

Workpiece spindle center height: 150mm

Workpiece spindle radial runout: ≤0.005mm

Grinding head spindle radial runout: ≤0.005mm

Air cylinder clamping force adjusting range: 700-900kg

Linear-axis resolving power: 0.001mm

Rotation axis resolving power: 0.001°

Voltage: AC 380V 50HZ 3 phase

Total power: 20KW/32KW

Machine dimensions: 1700×1730×2100mm

Machine weight: 4T

Product details

QD560 5-axis CNC tool grinder is made for the IT, automotive industry, aerospace industry, medical industry, and other metal grinding tools industries.

It is a high-precision and efficient tool grinding center with excellent performance at non-standard tools. And it is suitable for the production or grinding of milling tools, drilling tools, dental surgery tools, forming tools, etc.

The machine can be optionally equipped with a 3-axis automatic loading system, anti-collision system, accurate clamping and high accuracy holder for workpiece.

Machine Body:

Fuselage bases (X carrier, Y carrier, Z carrier, and Z column)are all made of natural granite with excellent thermal stability and vibration absorption,3-coordibate granite bases adopt high-precision grinding processing technology.

Linear axis X, Y, and Z adopt ball screw linear guide drive.

Rotation spindle A-axis and C-axis adopt powerful direct-drive conversion.

Double grinding spindle head(C-axis):

Equipped with 11KW high powerful precision direct drive grinding head.

Double grinding spindle head can be installed with 4-8 pieces of flange grinding wheels.

It can satisfy the technical requirement that one-time complete clamping and grinding of the front, back, and end face of the tool.

The workpiece spindle(A-axis):

The rotation spindle A-axis adopts direct-drive conversion, bearing is NSK precision spindle bearing, equipped with Taiwan’s W25 precision cylinder clamp which matches with the SCHAUBLIN precision chuck.

The workpiece is clamped by a pneumatic.

Optional loading:

The machine is equipped Nachi robotic arm. The automatic loading and unloading robot system can realize full-automatic production for 24 hours
