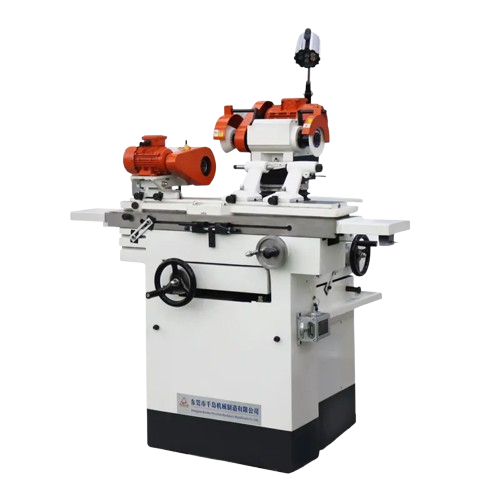

Qian Dao MQ6025A ເຄື່ອງບົດເຄື່ອງມືທົ່ວໄປ (250 mm, 0.85/ 1.1KW, 1400/2800 Rpm)

Swing dia.of workpiece: 250mm

Distance between centers: 630mm

Dimensions of the operating table: 940*135mm

Max Left and Right movement of worktable: 480mm

Swing angle of table: 120°(60°)

Max travel of wheel head cross wertica: 230mm

Min distance between central line of centers and grind wheel: 50mm

Max distance between central line of centers and grind wheel: 280mm

Max vertical travel of grinding head: 230mm

Wheel center line up to the top: 175mm

Wheel center line down to the top: 55mm

Swing angle of wheel head in horizontal plane: 360°

Swing angle of wheel head in vertical plane: 30°（±15°）

The end taper of the spindle: MT3# TAPER ANGLE

Grinding head motor power 50Hz

Power: 0.85/1.1KW

Speed: 1400/2800rpm

The speed of grinding head: 3050/6095rpm

Grinding head motor power

Power: 0.25KW

Speed: 1400RPM

The Dimensions of the machine: 1650*1150*1500mm

The weight of the machine: 940kg

Product details

MQ6025A Universal Tool Grinder is specially suitable for grinding tools of HSS, tungsten carbide and other materials. Convenient for cylindrical, surface groove and forming surface grinding work. MQ6025A Universal Tool Grinder With the usage of additional attachments, can grind various gears, worm wheel hobs, forming cutters, ball end mills, twist drill bits, taper reamer, etc.

The grinding head structure is flexible, can be adjusted in two dimensions. The headstock can be rotated in both directions, has international standard NT50 taper from one side and Morse 5# taper from the other side for easy installation of different tools and attachments. The working table adopts loading linear guide rails, operating smoothly and precise.
