Qian Dao GD-U3 ເຄື່ອງບົດຕັດເຄື່ອງມືທົ່ວໄປ (0.37kw, 2810 Rpm, Φ100mm)

Wheel

Diameter: Φ100mm

Thickness: 50mm/35mm

Hole diameter: Φ20mm

Spindle speed: 5200rpm

Max.clamping diameter: Φ3~28mm

Longitudinal traver of index head carrier: 140mm

Longitudinal adjustment travel of index head carrler: 18mm

Spindle and wheel longltudinal adjustment travel: 6mm

Taper angle range : 0~100°

Negative taper angle range: 0~20°

Relief angle range: 0~25°

Moter

Power: 0.37kw

Speed: 2810rpm

Voltage Three-Phase: 380V

Voltage Single-Phase: 220V

Frequency: 50Hz/60Hz

Gross weight: 56Kg

Product Details

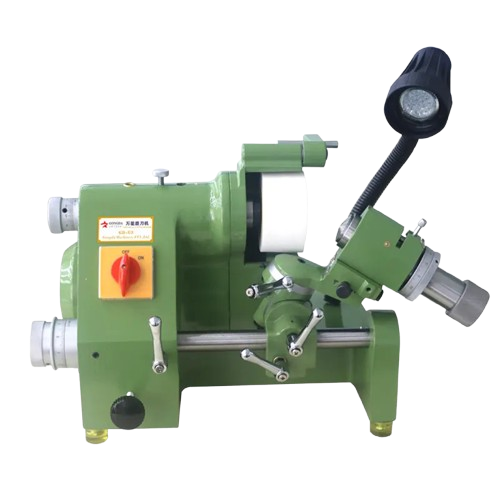

GD-U3 Universal Tool cutter grinder is suitable for grinding different diameters, shapes and angles of engraving knives, round knives, straight shank milling cutters, gravers, die milling used on computer engraving machines, engraving millers, machining centers, engraving machines, dividing machines, marking machines, etc. Easy to operate, high precision, great quality-price ratio. Projector can be optional.
