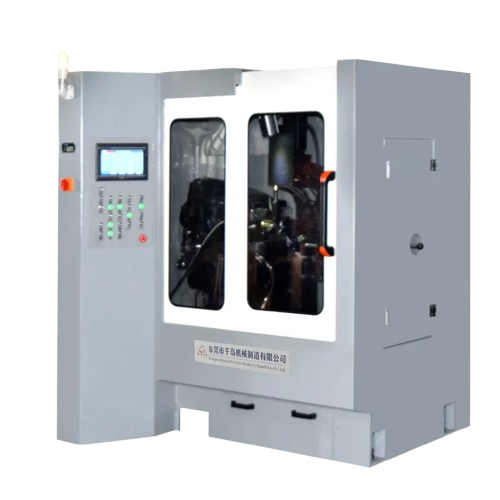

Qian Dao GD-650E ເຄື່ອງບົດໃບມີດຕັດວົງມົນອັດຕະໂນມັດສອງດ້ານ (Ø120–650 mm, 0.5～6mm/s)

Circle saw outside dia: Ф120～650mm

Bore dia: Ф12～105mm

Max thickness: 12mm

Tooth pitch: 7～60mm

Hook angle From: -15° to 30°

Radial angle From: -4° to 6°

Tangential angle From: 000 to +6 +5 +4

Maximum grinding stroke: 15mm

Grinding speed: 0.5～6mm/s

Grinding wheels outside dia: Ф80; Ф100; Ф125mm

Grinding wheel linear speed: 23m/s;28m/s;35m/s

Hydraulic dial tooth

Water pump flow: 24L/min

Content of coolant pump: 90L

Voltage three-phase: 380V

Total power: 3.8KW

Equipment size L*W*H: 1850*1650*1950mm

Total weight : About 1350kg

Product details

GD-650E Double side automatic saw blade grinding machine The maximum processing line can reach 800mm;Full servo tool setting and feeding；Fine grinding operation thickness tolerance 0.01mm
