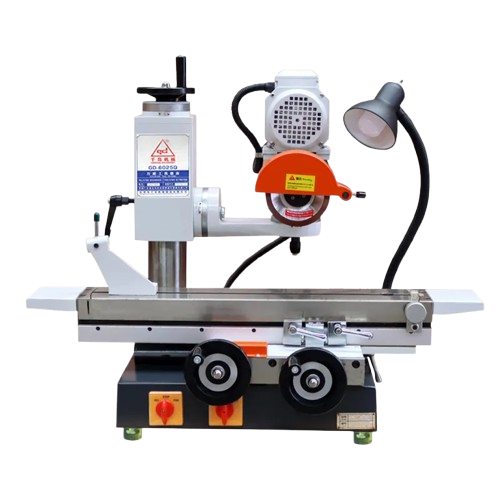

Qian Dao GD-6025Q ເຄື່ອງບົດເຄື່ອງມືທົ່ວໄປ (550W, 3600Rpm, 360°)

Longitudinal Travelof the Operating table: 300mm

Horizontal Travel of the Operating table: 170mm

Elevating Distance of Wheel Head: 140mm

Rotating Angle of Wheel Head: 360°

Speed of Grinding Wheel: 3600RPM

Main motor: 550W 220V/380V

Taper of spindle: MT 3#

The workbench Size: 130X680mm

Grinding Wheel Size :125 x 50 x 32mm

Net Weight: 165kg

Product Details

The operating table adopts high-precision linear guide rails, the table is stable and the operation is easy

The spindle adopts imported bearings, operating table and the taper can be adjusted

With a variety of accessories can be ground: forming tools, end mills, R-type milling cutters, reamers, turning tools, R-type turning tools, gear cutters, drill bits, engraving knives, full back cutters, chamfering knives, round knives, outer grinding, planar grooves, forming surface, etc.
