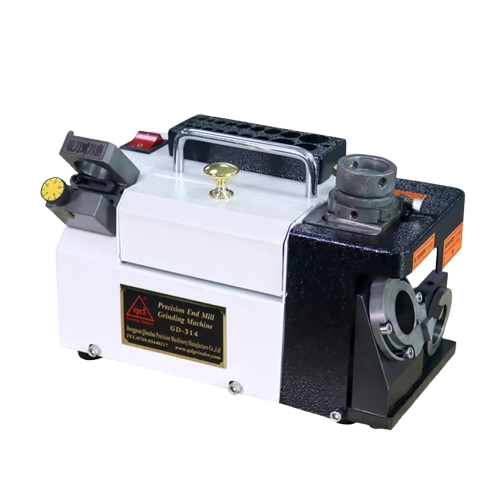

Qian Dao GD-314 ເຄື່ອງບົດໂຮງງານຕັດແບບແມ່ນຍໍາ (3-14mm,0-5°,4500rpm)

Voltage: 220V

Grinding range: 3-14mm

Tip angle: 0-5°

ER20 collet: φ4/6/8/10/12mm

Rotating speed: 4500rpm

Weight: 9.6KG

Product Details

The machine can quickly grind 2, 3, 4, 6 blades carbide and HSS universal end milling cutter

Suitable for straight shank milling cutter, grinding accurate and quick, simple operation, easy grinding with no special skills required

One grinding wheel can complete nose angle, front and back bevel angles grinding of milling cutter of different diameters and different quantity of blades

Installed grinding wheel can complete all processes, accurate angles, long service life, great cost saving, improved use efficiency

According to different cutting materials, the sharpeness of the cutting edge can be adjusted to improve the life of the milling cutter, cutting efficiency and machining accuracy.
