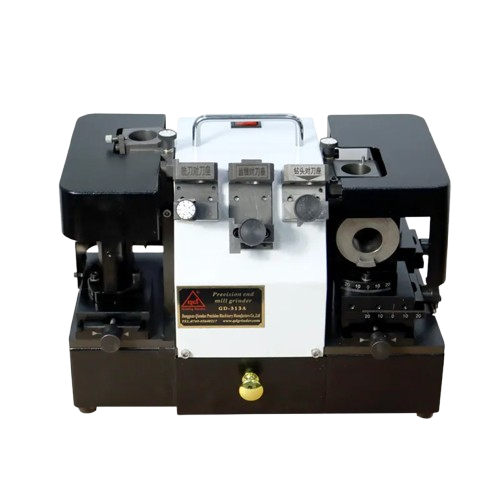

Qian Dao GD-313A ເຄື່ອງເຈາະ ເຄື່ອງບົດປະສົມ (φ3~φ14mm, 500W, 4500rpm)

Grinding range (milling cutter, ball nose cutter, drill bit): φ3–φ14 mm

Tap grinding range: M5–M20

Number of cutting edges: 2, 3, 4, 6 flutes

Voltage/Power: 220 V/500 W

Motor speed: 4500 rpm

Net weight: 25 kg

Product Details

1.Multi-purpose, precise and fast grinding, simple operation, easy grinding without skills.

2.It can quickly grind 2/3/4/6blade and other general-purpose end mills; it can also quickly grind 3-13mm twist drill bits.

3.The replacement cutting disc at the bit end can be used for bar cutting to realize the cutting function.

4.Can quickly grind 3, 4 flute straight flute and spiral flute taps (requires wheel replacement).

5.Can quickly grind R0.5-1-1.5-2 round nose knife (need to replace grinding wheel).
