Qian Dao GD-3060 AHD ເຄື່ອງບົດໜ້າດິນ (1450/1740 Rpm)

Table size（x*y): 600*300 mm

X axis max travel: 720 mm

Y axis max travel: 360 mm

The max center of wheel to table: 520 mm

The max load: 600 kg

Table T-slot: 14*1 mm×N

Table speed: 5~25 m/min

Y axis hand wheel feed(1 grid/1 circle): 0.02/5 mm

Y axis automatic feed: 0.1-8 mm

Y axis fast moving speed: 990/1190 mm/min

Wheel size: 350*40*127 mm

Wheel speed（50HZ/60HZ): 1450/1740 R.P.M

Z axis hand wheel feed (1 grid/1 circle): 0.005/1 mm

Z axis fast moving speed: 230 mm/min

Spindle motor: 5*4 HXP

Z axis motor: 750 W

Hydraulic motor: 2*6 HXP

Cooling motor: 90 W

Y axis motor: 80 W

Machine dimensions: 2000×1900×1800 mm

Weight: ≈2200 kg

Product details

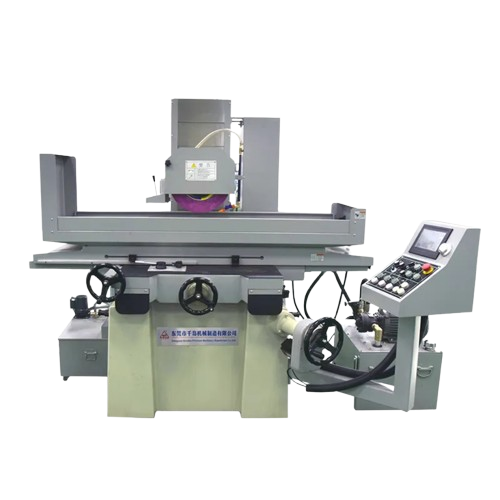

Surface Grinder Machine （GD-3060 AHD）

Feature.

1.Adopt the exceeding precise class7(P4 level) ball bearing for spindle.

2.The transmission of table can be hydraulic and manual.

3.Working from left to right and front to left are automatic

4.The machine can grind the materials of Iron, steel, ceramics, a variety of mixed metal.

5.If the material is very hard, it will be changing the high hardness of the wheel, such as diamond grinding wheel.

6.If the material is not sensitive to magnetic, then need to choose the fixture
