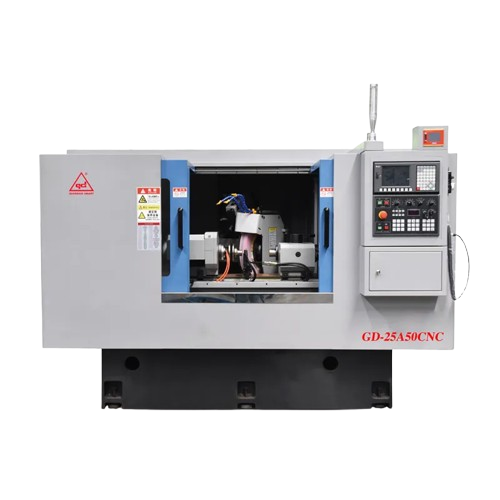

Qian Dao GD-25A50CNC ເຄື່ອງບົດຮູບຊົງກະບອກທີ່ມີຄວາມແມ່ນຍໍາສູງແບບອຽງ (35 m/s, 250 mm)

The maximum rotation diameter of the workbench: 250mm

The longest distance between two peaks: 500mm

Maximum load between two centers: 80Kg

Grinding wheel size (diameter x thickness x hole diameter): 510x50x203.2 mm

Line speed: 35m/s

Grinding wheel head feed angle: 60°

X axis feed speed: 6 m/min

Grinding wheel head feed stroke: 225mm

X-axis minimum setting unit: 0.001mm

Headstock spindle speed: 0-600rpm

Headstock spindle: Centering (optional with simultaneous movement)

Headstock thimble: MT5

Tailstock automatic retractable distance: 40mm

Tailstock thimble: MT4

Z axis rapid movement speed: 8mm

Z axis minimum setting unit: 0.001mm

Maximum moving stroke of worktable: 500mm

Table rotation angle: +9/-3°

Grinding wheel spindle motor: 5.5KW

X axis feed motor: 1.5KW

Z axis feed motor: 1.5KW

Headstock spindle motor: 1.1KW

Cooling water motor: 0.25KW

Tailstock oil pump motor: 1HP

Controller: FANUC/Delta

Mechanical weight: 3800 Kg

Product details

The grinding wheel spindle has the characteristics of high rigidity, high precision, long life, low vibration and low friction.

With the automatic centering function, the main shaft of the grinding wheel will not be deflected due to the influence of the belt tension.

The spindle has the functions of centering and synchronous motion, which can be quickly switched between top processing and chuck clamping processing.
