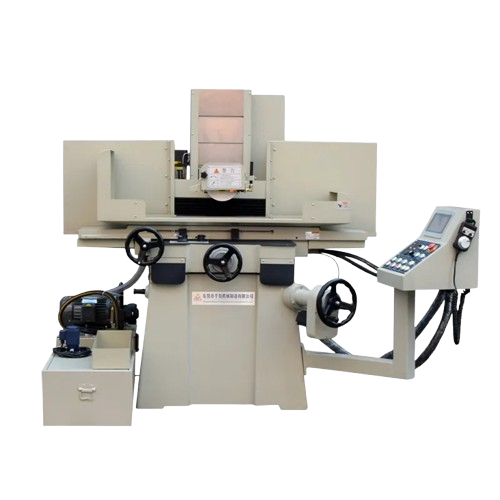

Qian Dao GD-250AHD ເຄື່ອງບົດພື້ນຜິວທີ່ມີຄວາມແມ່ນຍໍາສູງ (2850/3360Rpm, 500*200 mm)

Table dimensions（x*y): 500*200 mm

X axis max travel: 600 mm

Y axis max travel: 220 mm

The max center of wheel to table: 480 mm

The max load: 450 kg

Table T-slot(mm×N): 14*1

Table speed(m/min): 5~25

Y axis hand wheel feed(1 grid/1 circle): 0.02/5 mm

Y axis automatic feed: 0.1-8 mm

Y axis moving speed（50HZ/60HZ): 990/1190 mm/min

Wheel size: 180*12.5*31.75 mm

Wheel speed（50HZ/60HZ): 2850/3360 R.P.M

Z axis hand wheel feed (1 grid/1 circle): 0.005/1 mm

Spindle motor(HXP): 2*2

Z axis motor: 750 W

Hydraulic motor(HXP): 1.5*6

Cooling motor: 40 W

Y axis motor: 80 W

Machine dimensions: 1750×1400×1680 mm

Weight: ≈1200 kg

Product details

Adopt the exceeding precise class7(P4 level) ball bearing for spindle.

The transmission of the table can be hydraulic and manual.

Working from left to right and front to left is automatic

The machine can grind the materials of Iron, steel, ceramics, a variety of mixed metal.

If the material is very hard, it will be changing the high hardness of the wheel, such as diamond grinding wheel.

If the material is not sensitive to magnetic, then need to choose the fixture
