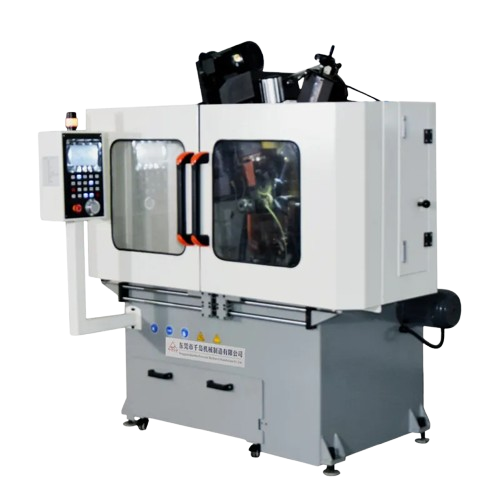

Qian Dao GD-200E ເຄື່ອງຄົມໃບເລື່ອຍວົງກົມອັດຕະໂນມັດ (Ø120–Ø800 mm, 0.5～6mm/s)

Circular saw outside diameter: Ф120～Ф800mm

Bore hole diameter: Ф16～Ф120mm

Max blade thickness: 6mm

Tooth pitch: 7～60mm

Rake angle: -10°～+40°

Clearance angle: 6～45°

Bevel grinding top & face: Top 45°，Face 45°

Range of grinding cycle: Max 25mm(adjust)tooth/min

Grinding speed: 0.5～6mm/s

Feeding speed Max: 13 tooth/min

Grinding wheel outside dia: Ф125mm

Grinding wheel linear speed: 28m/s

Hydraulic dial tooth (Direct dial)

Spindle servo in-feed

Capacity of coolant pump: 25L/min

Content of coolant pump: 80L

Total ppower: 2.8KW

Machine size: 1755×1650×1900

Weight: 950kg

Product details

GD-200E Automatic Circular Saw Blade Sharpening Machine Adopt the control mode combining servo and hydraulic pressure,Servo feed, servo swing head, one-time forming of ladder flat teeth；Grinding precision <=0.03mm

GD-200E is an economical saw blade grinder, which can efficiently grind the tooth top and tooth surface of circular saw blades.
