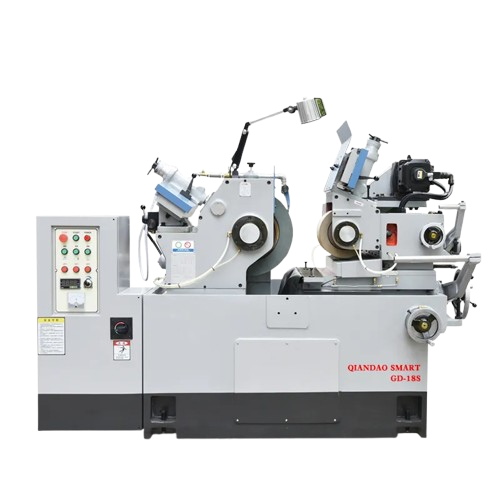

Qian Dao GD-18S ເຄື່ອງບົດແບບບໍ່ມີສູນກາງຄວາມແມ່ນຍໍາສູງ (1520 Rpm, Ø455 × 205 × Ø228.6 mm)

Processing diameter:

Standard workbench: ￠0.5~60mm

Special workbench: ￠40~120mm

Grinding wheel spindle:

Grinding wheel size: ￠455x205x￠228.6mm

Motor power: 15HP

Grinding wheel speed: 1520R.P.M

Regulating wheel axis:

Adjust wheel size: ￠255x205x￠111.2

Regulating wheel speed: 10~250R.P.M

Motor power: 3.0kw (servo)

Inclination angle of the regulating wheel: +5°~﹣3°

Rotation angle of the regulating wheel: +5°~﹣5°

Handwheel

Lower slide rail feed handwheel: 9.0/rpm 0.10/scale

Lower slide rail fine-tuning handwheel: 0.2/rpm 0.001/scale

Upper slide rail feed handwheel: 3.5/rpm 0.05/scale

Upper slide rail fine-tuning handwheel: 0.1/rpm 0.001/scale

Dressing axis feed handwheel: 2.0/rpm 0.01/scale

Drive motor

Oil pump drive motor: 1HP

Cooling pump drive motor: 1/4HP

Machine dimensions: 2350 x1960 x1550mm

Mechanical weight: 2850Kgs

Product details

High-precision centerless grinding machine GD-18S direct supply Taiwan original Jianchang spindle, runout within 0.001mm, double V-shaped guide rail structure, lubrication and no wear, two sets of upper and lower feed structures, can easily grind even fine workpieces. The infinitely variable speed guide wheel structure can adjust the appropriate feeding speed according to the diameter and length of the workpiece to ensure the roughness of the workpiece.

According to the requirements of the workpiece, it can realize rough grinding, semi-finish grinding, fine grinding and other multi-machine connection methods, complete the grinding of the workpiece at one time, and adopt multiple automatic feeding and receiving such as through-type grinding, vibrating disc, and feeding conveyor belt.
