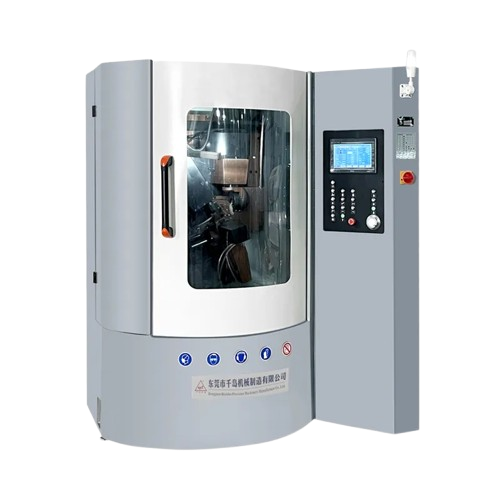

Qian Dao GD-100D ເຄື່ອງບົດໃບເລື່ອຍອັດຕະໂນມັດ CNC (Ø120–Ø650 mm, 0.5～6mm/s)

Circular Saw Outside Diameter: Ф120～Ф650mm

Bore Hole Diameter: Ф10～Ф120mm

Max Blade Thickness: 12mm

Tooth Pitch: 7～60mm

Rake Angle: -10°～+40°

Clearance Angle: 6～45°

Bevel Grinding Top & Face: Top 45°，face 45°

Range Of Grinding Cycle: Max 25mm(adjust)tooth/min

Grinding Speed: 0.5～6mm/s

Feeding Speed Max: 13 Tooth/min

Grinding Wheel Outside Dia.: Ф125mm

Grinding Wheel Linear Speed: 28m/s

Hydraulic Dial Tooth (direct Dial)

Servo Speed/serrvo Adjustment Angle Of Worm Gear

Capacity Of Coolant Pump: 25l/min

Content Of Coolant Pump: 100l

Total Power: 3.5kw

Equipment Size: 1645×1500×1855

Weight About: 1150kg

Product details

GD-100D CNC saw blade grinding machine adopts automatic service and automatic control, processing and grinding the tooth top and tooth surface of circular saw blade, easy to operate; servo feeding system, servo + worm gear swing head, servo tooth extraction; The radial adjustment of the saw blade after grinding is <=0.02mm
