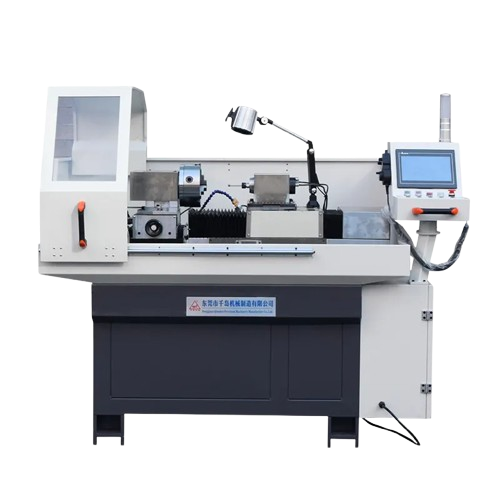

Qian Dao GD-02S ເຄື່ອງຂັດພາຍໃນອັດຕະໂນມັດ (1500W,0~20000rpm)

Grinding diameter range:Φ3-160mm

Clamping diameter: Φ3-200mm

Max travel

Horizontal: 100mm

Longitudinal: 200mm

Work head rotation speed: 0~500rpm

Working head rotation angle: ±45°

Spindle speed: 0~20000rpm

Spindle motor: 1500W

Machine size(L×W×H): 1930*1260*1630mm

Machine Net weight: 1200Kg

Product details

Three-jaw Chuck Type automatic Internal Grinding Machine Used for grinding and processing inner holes of hardware tool collets, sleeves, mandrels, etc.，Automatic grinding, manual loading and unloading

Stable structure, stable inner hole processing performance. Equipped with water tank cooling device, can be water milled. The three-jaw chuck is flexible and can meet the processing needs of various specifications of workpieces.

Adopt 8-inch Taiwan Qiandao Chuck, the clamping range is Φ3-160mm, and the grinding accuracy is about 0.002mm

The large-angle plate can be adjusted according to the angle of the inner hole of the workpiece, and the grinding range is flexible
