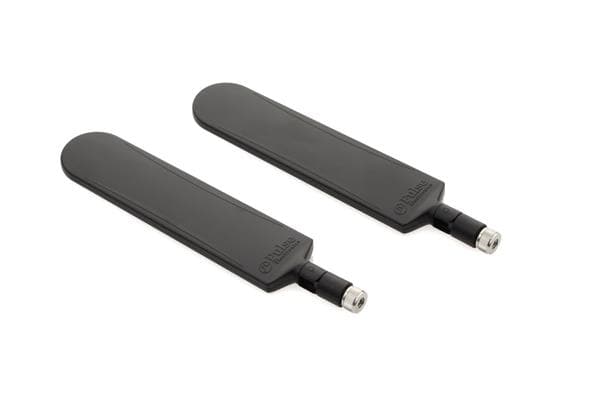

Pulse Electronics W5084K ເຄື່ອງຮັບສະຫນອງອັດຕະໂນມັດ LTE 698-2690 MHz ສະວິວເລດດິໂພນ SMA

Gain: 2 dBi, 4 dBi, 5 dBi

VSWR: 3, 3.6, 3

Style: Blade Tilt / Swivel

Width: 41.53 mm

Length: 223.24 mm

IP Rating: IP65

Impedance: 50 Ohms

Application: Cellular Radio, Gateways, Routers, Set Top Boxes, Security, Metering, IoT Devices, M2M

Unit Weight: 66 g

Polarization: Horizontal

Power Rating: 5 W

Mounting Style: Panel Mount

Electrical Type: Dipole

Number of Bands: 4 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 3500 MHz, 1575 MHz, 1602 MHz

Mechanical Style: Whip

Maximum Frequency: 3.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
