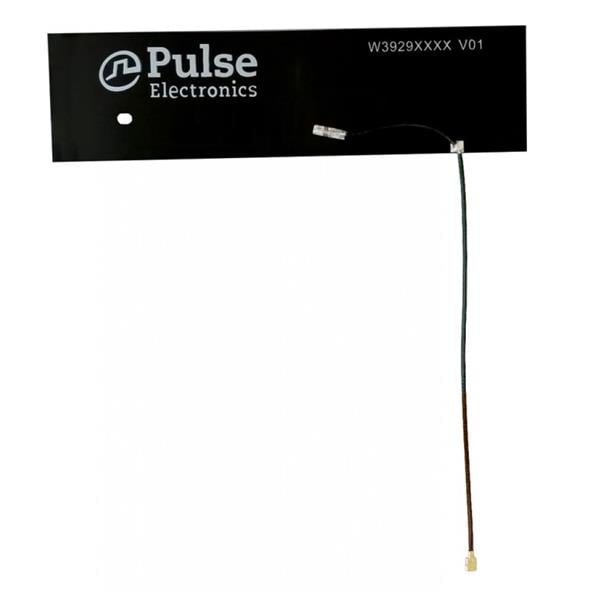

Pulse Electronics W3929B0100 ແນວອານເຕນາພາສິບ Antenna Ant Int 0.617-3.9GHz I-PEXMHF

Gain: 2 dBi, 2 dBi, 2 dBi

Style: T-Bar Flex

Width: 30.4 mm

Height: 11 mm

Length: 115.8 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: Cellular Application, RF Environments, Security, Video, Graphics, IoT Devices, Smart Grid, Meters, Remote Monitoring, Sensor Networks

Cable Length: 100 mm

Polarization: Linear

Power Rating: 3 W

Mounting Style: Adhesive Mount

Number of Bands: 3 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 3500 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 3.9 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Antenna Connector Type: IPEX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
