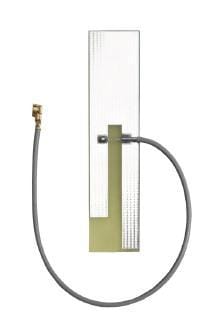

Pulse Electronics W3525B100 ແນວຮັບສະສົມສະຕິກ PWB 10 ນິ້ວ

Gain: 2 dBi

VSWR: 2.5:1

Style: I-Bar

Width: 10.7 mm

Height: 0.8 mm

Length: 47.7 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: ISM Applications, Wireless Applications, Security, IoT Devices, Monitoring, Industrial

Unit Weight: 2.091 g

Cable Length: 10 in

Power Rating: 1 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
