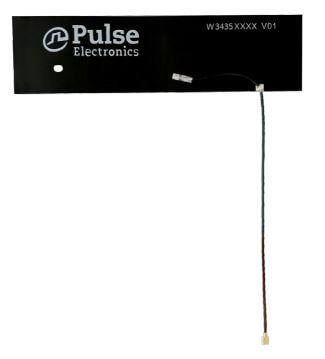

Pulse Electronics W3435B0100 ແນວຮັບສະສົມສະຕິກ FPC ລວມສາຍ 100mm 3W 617-2690MHz

Gain: 2.5 dBi

Style: T-Bar

Width: 30 mm

Length: 116 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: Satellite Tracking, ISM Applications, Wireless Applications

Polarization: Vertical

Power Rating: 3 W

Mounting Style: Adhesive Mount

Electrical Type: Monopole

Number of Bands: 2 Band

Center Frequency: 868 MHz, 915 MHz, 2.4 GHz, 5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.69 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID, U-NII

Antenna Connector Type: U.FL

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
