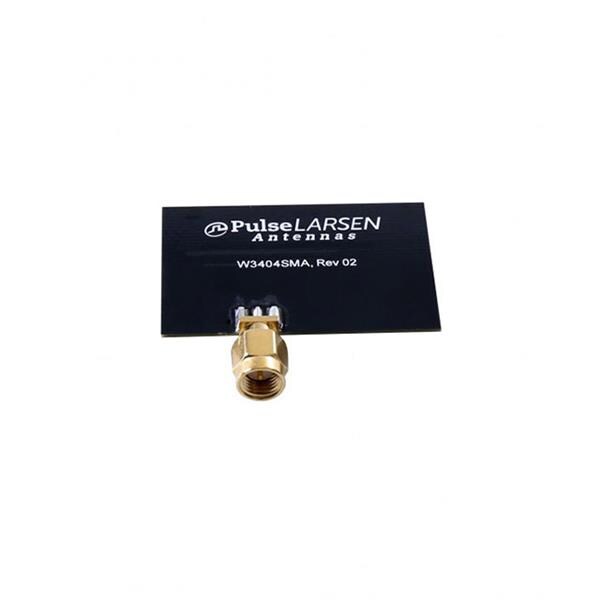

Pulse Electronics W3404SMA ອະນຕີນາພາສິບ Antenna Ant Int PCB 698-2690MHz SMA

Gain: 2.2 dBi, 4.4 dBi

Style: T-Bar

Width: 31 mm

Height: 0.7 mm

Length: 42.4 mm

Impedance: 50 Ohms

Application: Cellular Applications

Unit Weight: 15 g

Polarization: Linear

Power Rating: 3 W

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 2 Band

Center Frequency: 830 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA
