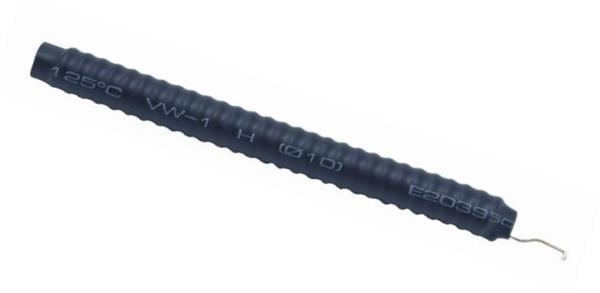

Pulse Electronics W3100C ແນວຮັບສະສົມສະບັບຮອບຮອຍ 915MHz

Gain: - 0.5 dBi

VSWR: 2:1

Style: Coil

Length: 10 mm

Diameter: 9.8 mm

Impedance: 50 Ohms

Application: ISM Application, IoT Devices, Smart Meters

Polarization: Vertical

Mounting Style: PCB Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 915 MHz

Mechanical Style: Helical

Maximum Frequency: 915 MHz

Termination Style: Through Hole

Protocol - Sub GHz: ISM, RFID

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
