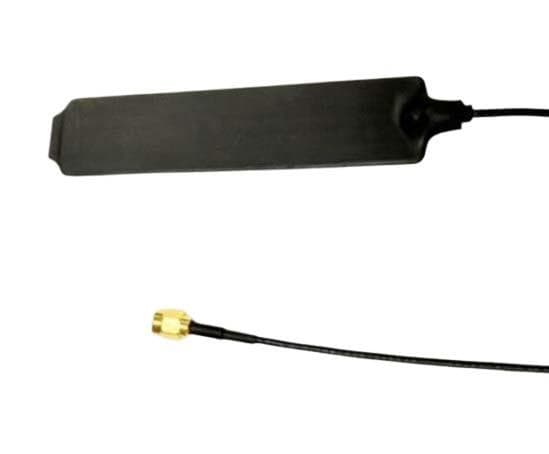

Pulse Electronics W1991 ເຄື່ອງຮັບສະຫນອງສະຫນອງສະຫນອງ LTE Stealth Blade ANTENNA, NPB

Gain: 2 dBi, 2 dBi

VSWR: 2.5:1

Style: I-Bar

Width: 26.16 mm

Height: 2.08 mm

Length: 105.7 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 10 ft RG316

Technology: Cellular, WLAN

Application: Access Points, IoT - Vending/Smart Metering, WLAN, LTE and 3G/4G Applications

Unit Weight: 44 g

Cable Length: 10 in

Polarization: Vertical

Power Rating: 3 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 3 Band

Center Frequency: 750 MHz, 850 MHz, 868 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA
