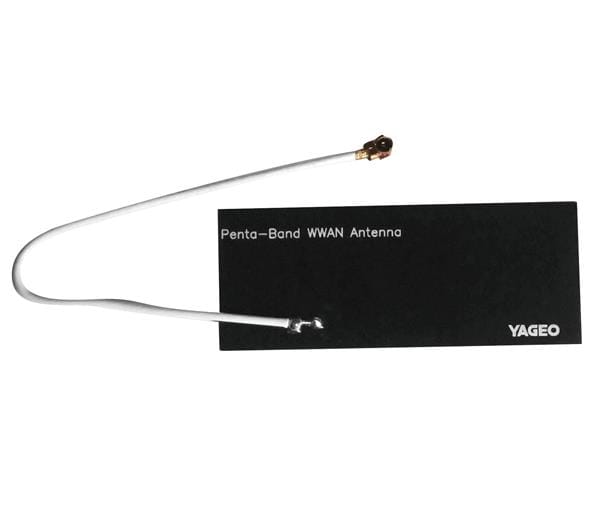

Pulse Electronics ANTX100P001BWPEN3 ເຄື່ອງຮັບສະສົມສະຫຼຸບ 850/900/1800/1900/2100MHz PENTABAND

Gain: 3.9 dB, 4.2 dB, 4.5 dB, 5 dB, 5.1 dB

VSWR: 3:1

Style: I-Bar Flex

Width: 20 mm

Height: 0.95 mm

Length: 100 mm

Impedance: 50 Ohms

Cable Type: 1.13 mm Mini Coaxial Cable

Unit Weight: 3.524 g

Cable Length: 100 mm

Polarization: Linear

Power Rating: 1 W

Mounting Style: PCB Mount

Number of Bands: 5 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.1 GHz

Minimum Frequency: 850 MHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA
